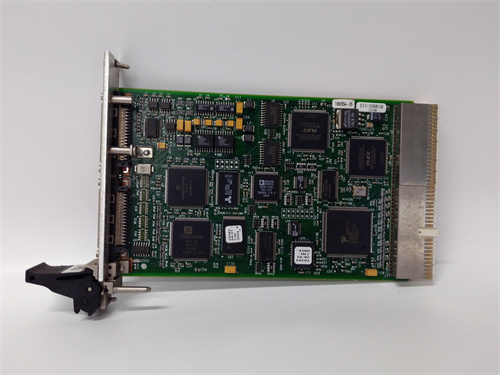

NI SCXI-1160 | National Instruments 16-Channel Relay Module

Description Product Introduction Automated test systems need to route signals, switch power to units under test, or control external solenoids. The SCXI-1160 slides into an SCXI chassis and gives you 16 independent SPDT relays to do exactly that. It’s the switching workhorse of the SCXI family. What makes the 1160 different from a simple relay board? Each channel is fully independent—no common connections. You get a common, normally open, and normally closed terminal per relay. In my experience, this is invaluable when you’re switching different signal types (low-level analog, digital, even low-power AC) in the same module. The relays are rated for 2 A at 30 VDC or 250 VAC, so they handle most test system loads. You control them programmatically from LabVIEW or any NI-DAQ supported language. Key Technical Specifications Parameter Value Model SCXI-1160 Part Number 776572-60 Brand National Instruments Series SCXI Product Type Relay Output Module Number of Channels 16 Relay Type SPDT (Form C), electromechanical Contact Configuration 1 common, 1 NO, 1 NC per channel Maximum Switching Voltage 30 VDC, 250 VAC Maximum Switching Current 2 A (resistive load) Maximum Switching Power 60 W, 62.5 VA Contact Resistance < 100 mΩ (initial) Operate Time < 5 ms (typical) Release Time < 3 ms (typical) Mechanical Life 10⁷ operations (typical) Electrical Life 10⁵ operations at rated load Backplane Current 400 mA @ 5 VDC LED Indicators None (channel status via software) Temperature Rating 0 °C to 50 °C operating Mounting SCXI chassis (4-slot, 8-slot, or 12-slot) Connector 50-pin male ribbon (front) for field wiring  Firmware / Software Versions & Upgrade Notes The SCXI-1160 is a hardware-controlled module. No user-upgradeable firmware. No User Firmware: The module uses fixed logic for relay control. There’s no EPROM to flash. Hardware Revision: Look for Rev 2 or later on the PCB. Rev 1 had a known issue with the relay driver IC—in high-vibration environments, the drivers could intermittently latch relays closed. Rev 2 used a different driver with better hold characteristics. Configuration: All control is via software: NI-DAQmx: Use DAQ Assistant or programmatic relay control functions Traditional NI-DAQ (Legacy): Use relay control VIs LabVIEW: Direct control via DAQmx Write or Relay Control palette C/C /C#: Use NI-DAQmx API functions Compatibility: Works with all SCXI chassis (1000, 1001, 1000DC, 1100) Requires NI-DAQ driver (version 7.0 or later recommended) Compatible with LabVIEW, LabWindows/CVI, Measurement Studio, and any language supporting NI-DAQ Relay Operation Modes: Non-latching: Relay energized only while software holds it Latching: Relay toggles and holds state without continuous power Diagnostics: No onboard diagnostics. Use software to read back relay states (if configured). Compatibility & Replacement Matrix Use this when building or maintaining SCXI switching systems. Original Model Replacement Model Compatibility Level Key Notes SCXI-1160 SCXI-1160 Drop-in Identical part. Direct replacement. SCXI-1160 SCXI-1161 Needs Adaptation SCXI-1161 is 8-channel, 5 A relay module. Higher current, fewer channels. Different wiring. SCXI-1160 SCXI-1162 Incompatible SCXI-1162 is a digital input module. No relay outputs. SCXI-1160 PXI-2566 Needs Adaptation PXI-2566 is a PXI relay module. Requires different chassis and software configuration. Not a drop-in. SCXI-1160 Third-party relay board Incompatible Requires custom cabling and software. Not NI-certified. 81EU01E-E PLC IS2020ISUCG1A PLC IS2020ISUCG3A PLC IS2020DDIAG1B IS2020RKPSG2A PLC IS2020LVPSG1B dcsplc Email: [email protected] Phone: 86 15340683922 Sales:Wu Jiedong Our products are guaranteed for 1 year, with new and original production stopped and imported spare parts. All prices listed on the official website are subject to confirmation by contact: Wu Jiedong (manager). Our product: brand new original packaging Our warranty: All new or repaired parts have a 12 month warranty period beginning Our payment: 100% telegraphic transfer of inventory items before shipment, conditions can be proposed! If you have any downtime spare parts that you cannot find, please feel free to call or use email to contact me. If there are issues that the product cannot solve, please contact me. Product prices can be negotiated. Please do not consider contacting me!
